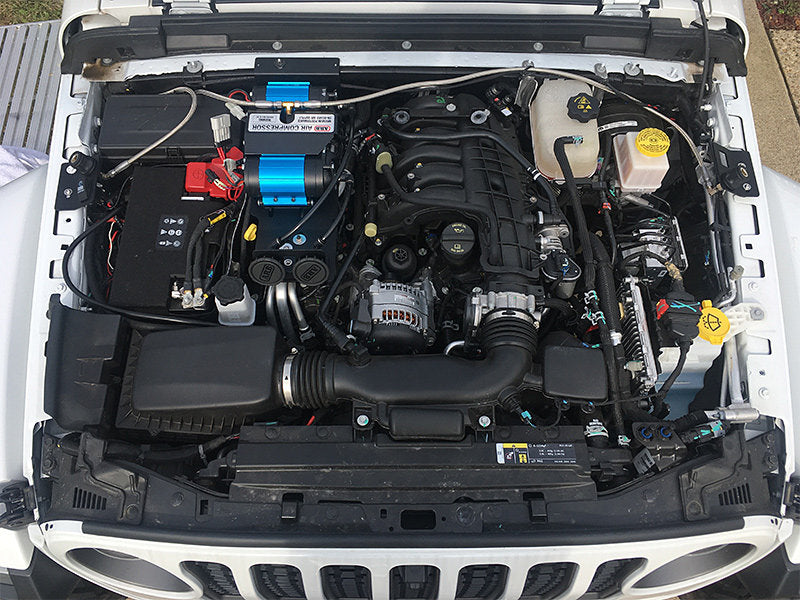

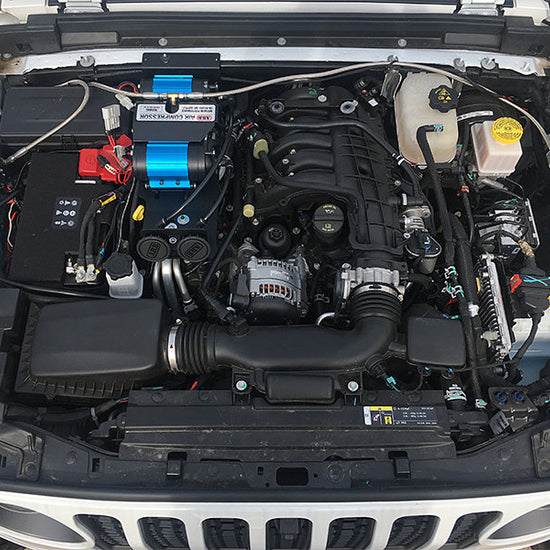

Jeep JL / Gladiator Under Hood ARB Twin/Single Compressor Mount

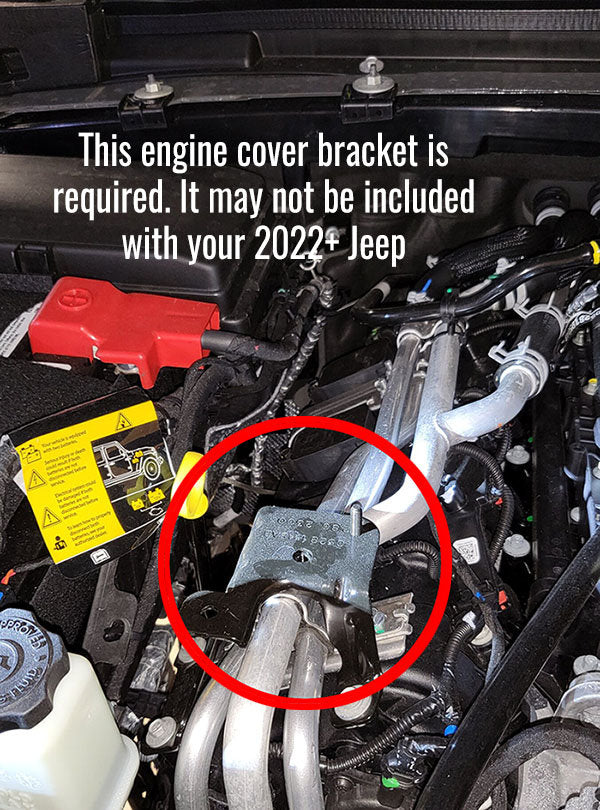

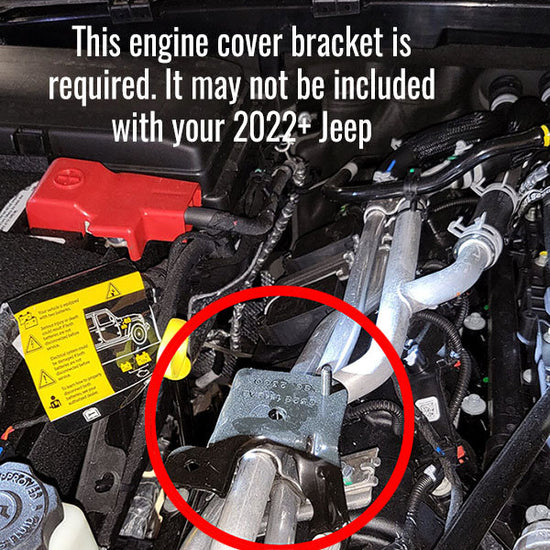

Jeep has stopped including the engine cover on new 2022+ Jeeps. Since the engine cover is not included the bracket to hold the cover has also been deleted and not included. If you did not receive an engine cover (started with some 2022 models and up) you may not have the required engine bracket needed for the UnderHood mount to work. See photos for a photo of the required bracket. Front Engine Cover Bracket Part Number (5281948AB)

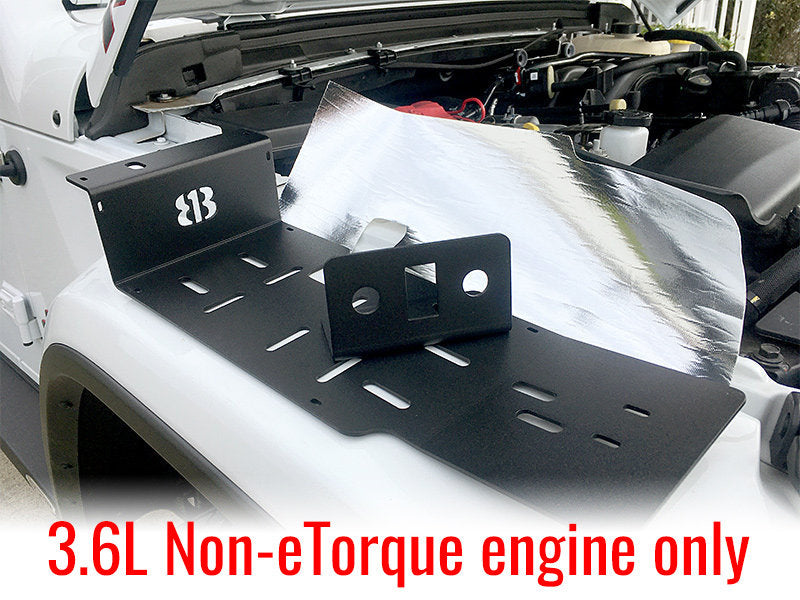

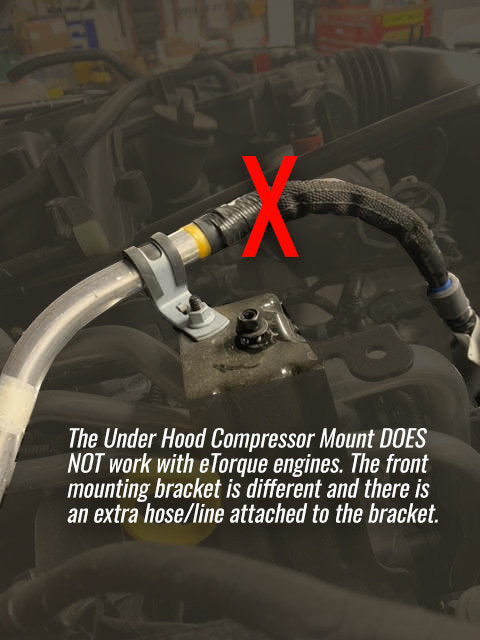

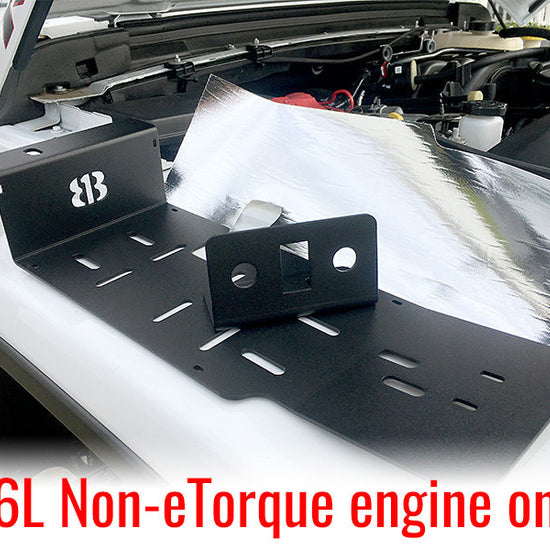

Fits Jeep Gladiator & Jeep JL with 3.6L Engine ONLY. Does not fit the 3.6L eTorque, 2.0, Diesel or V8 engines.

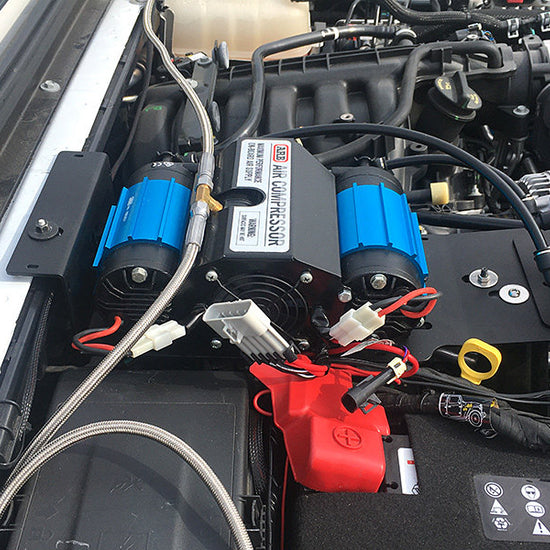

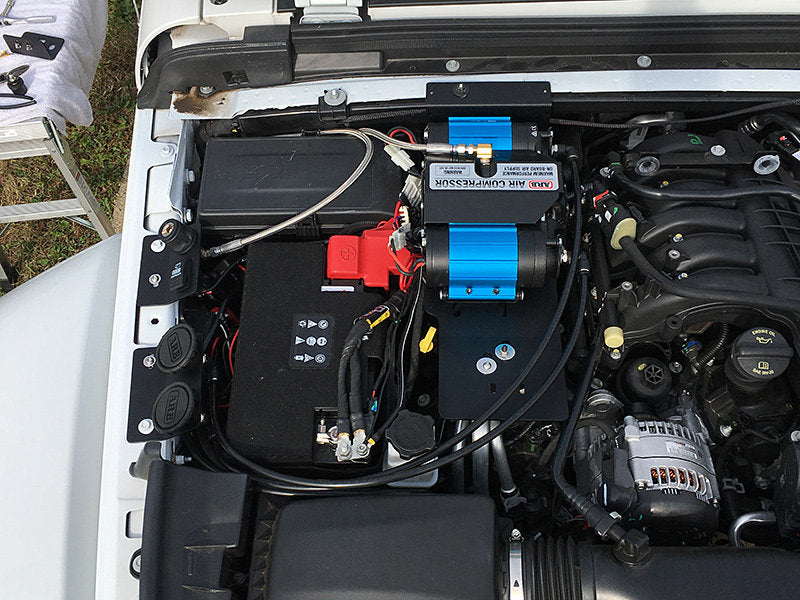

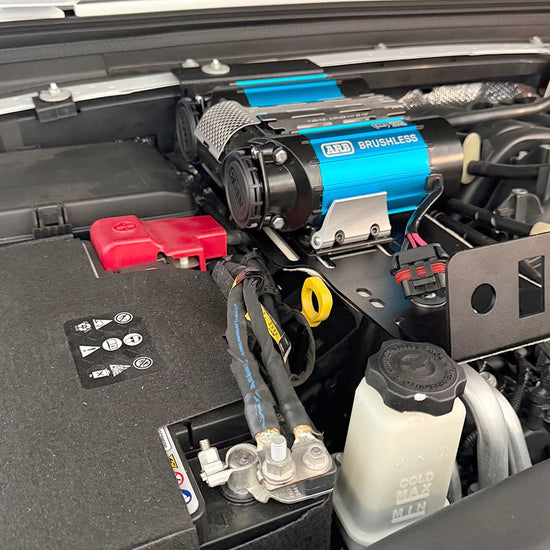

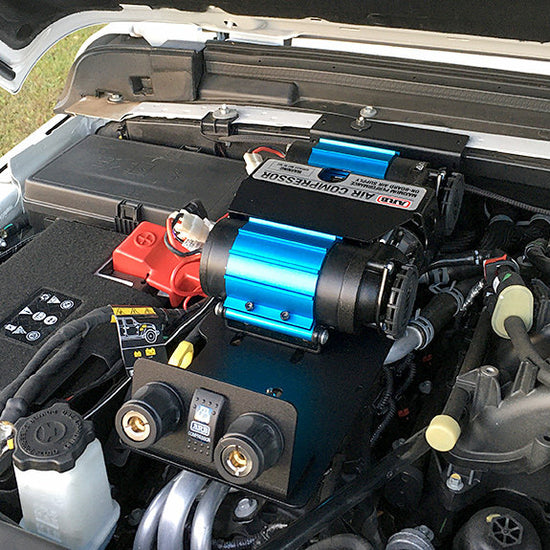

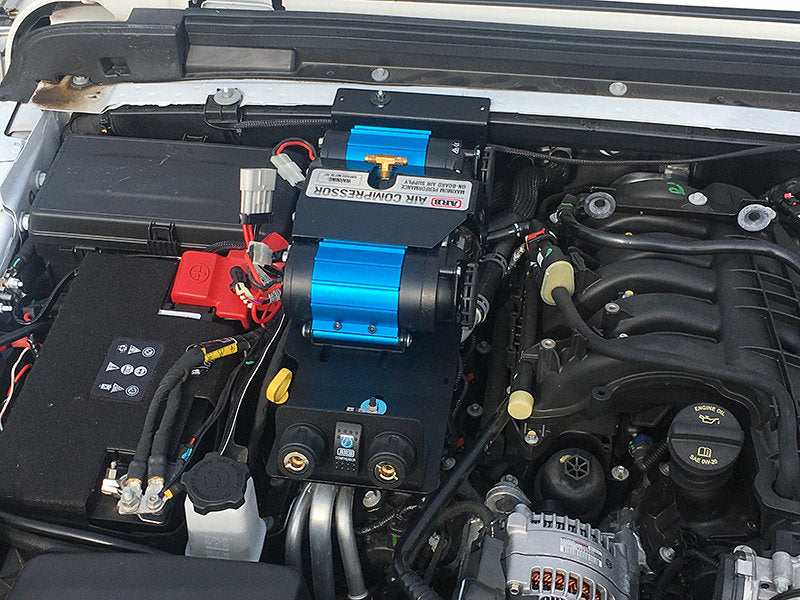

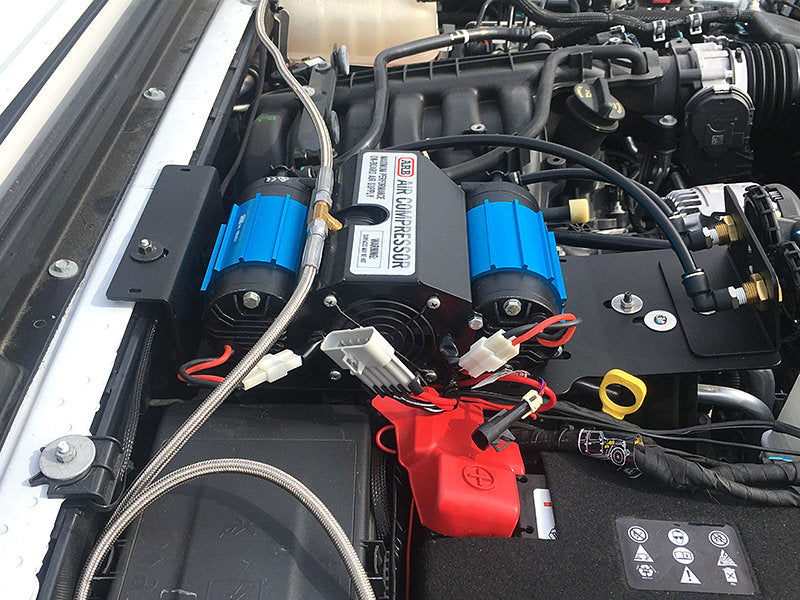

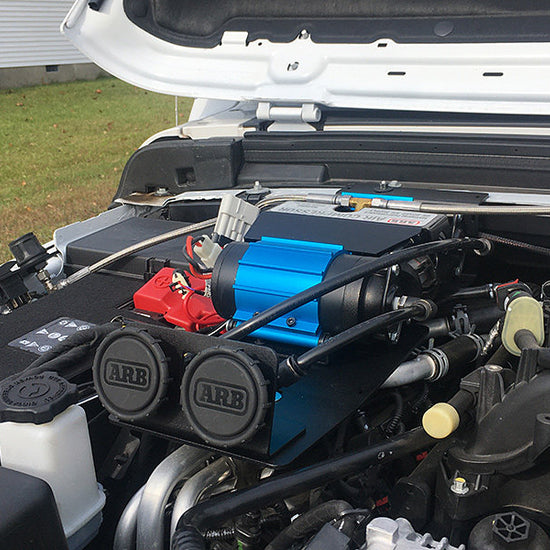

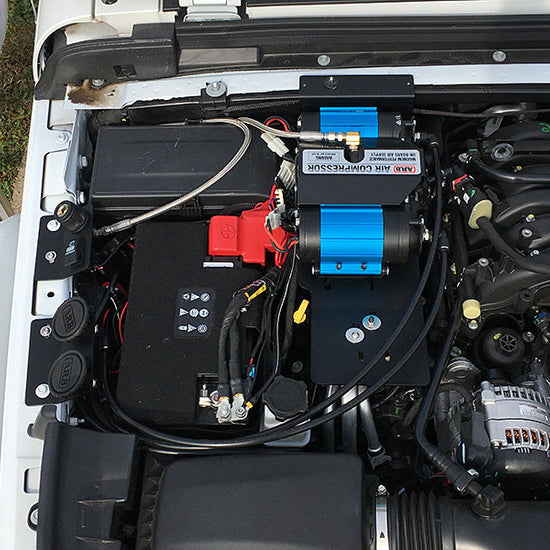

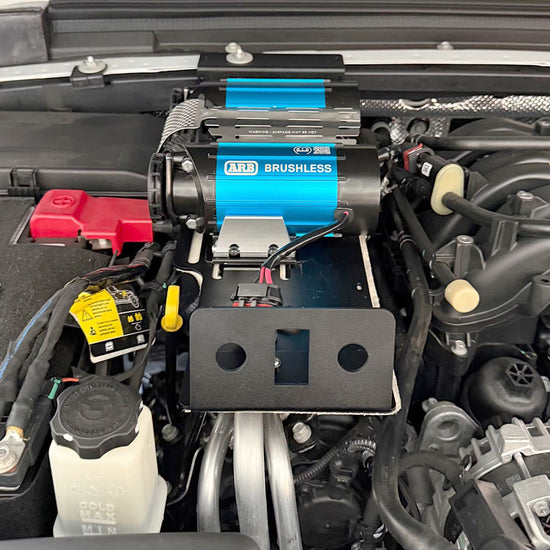

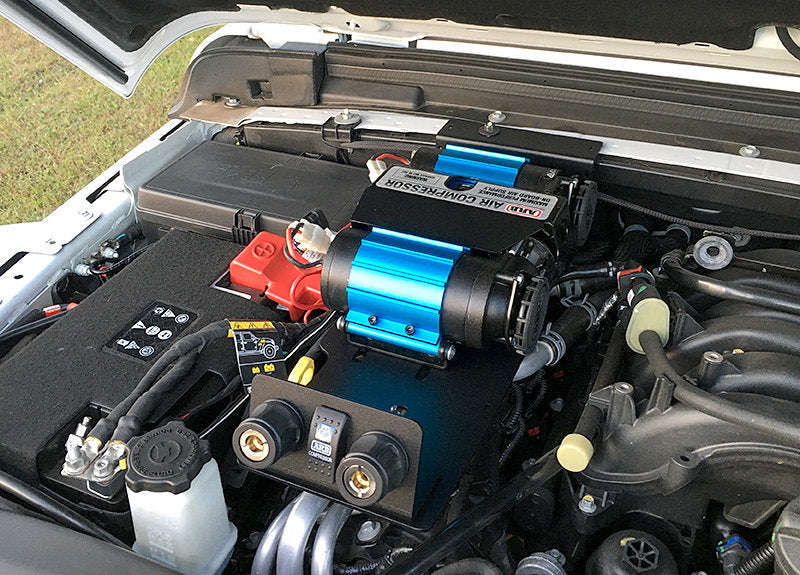

Designed to mount the ARB Twin or Single Compressors, including the new brushless compressors. Included with the kit are: Compressor mounting plate, dual air chuck / rocker switch plate and mounting hardware. The compressor plate also includes small slots along both sides for zip ties once you have your airlines and wiring setup. We recommend using an adhesive heat shield on the bottom of the compressor mounting plate to help block radiant heat from the compressor. Heat shield NOT included.
Removal of the plastic engine cover is required to use this mount. There is a VERY slight amount of contact with the hood liner from a corner of the black casing of the compressor when using the ARB Twin on Rubicon models.
Optional "Air Kit" options available:

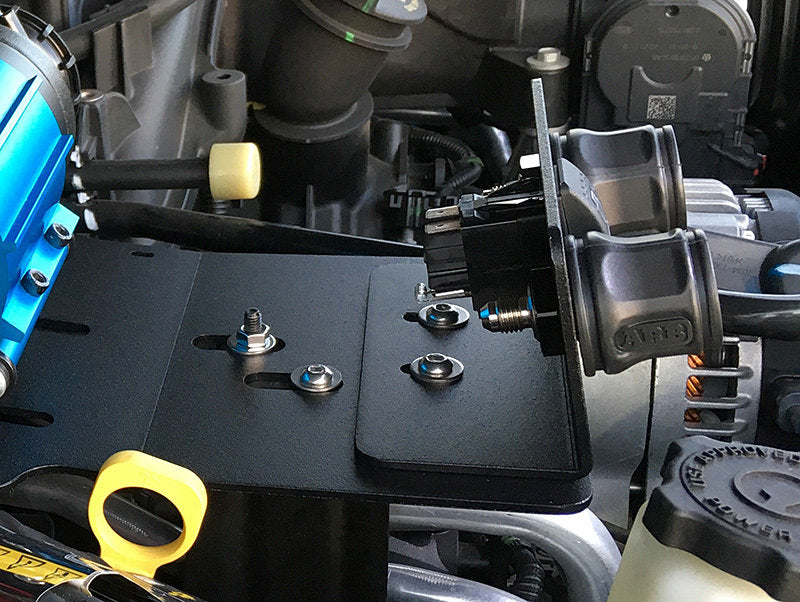

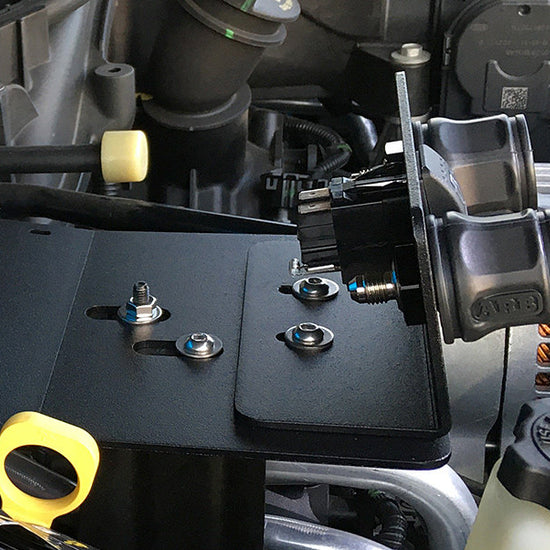

- "No Air Kit Needed" - includes compressor mounting plate, small front plate for air couplers and switch and mounting hardware. No air lines, fittings or air couplers are included in this kit.

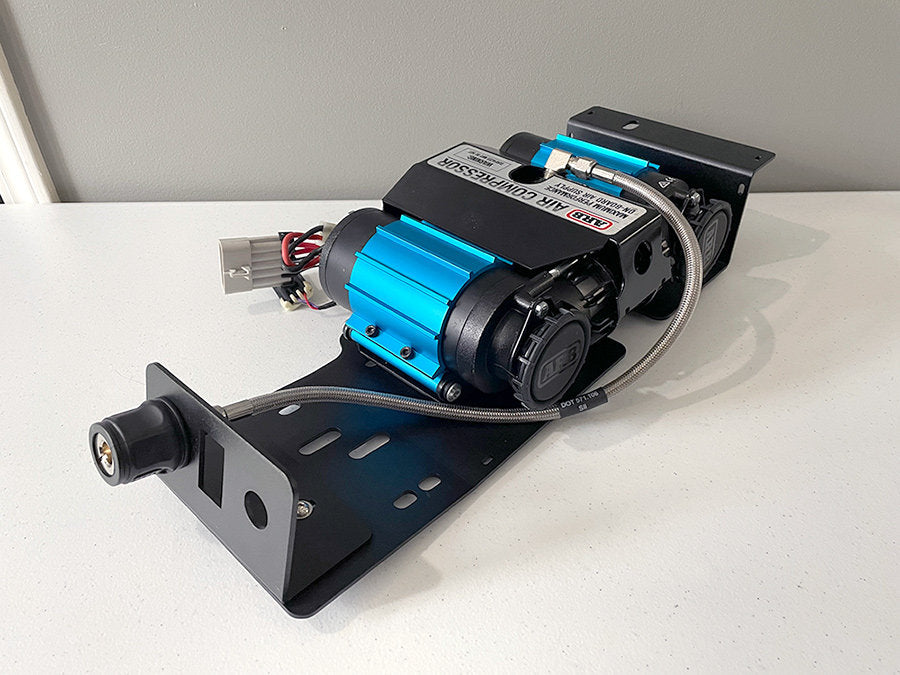

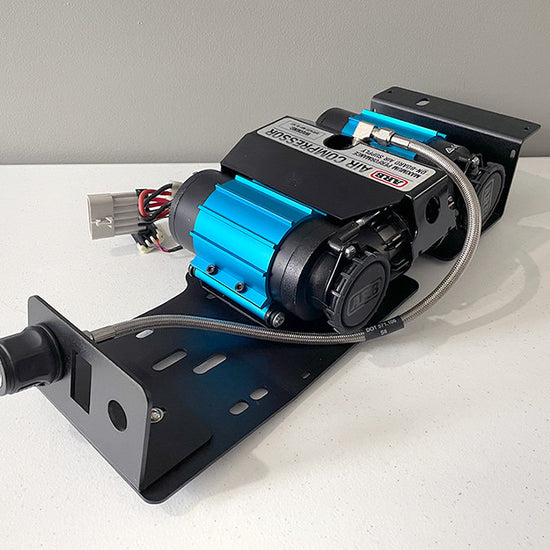

- "Single Air Coupler Kit"- +$54.99 - includes compressor mounting plate, small front plate for air couplers and switch, mounting hardware, one 20" stainless air line, one ARB 90° air fitting and one ARB JIC-4 Air Coupler to mount on the front small plate of the compressor mount.

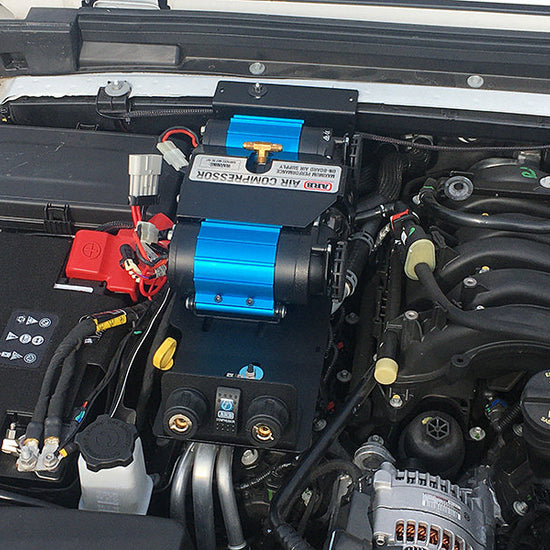

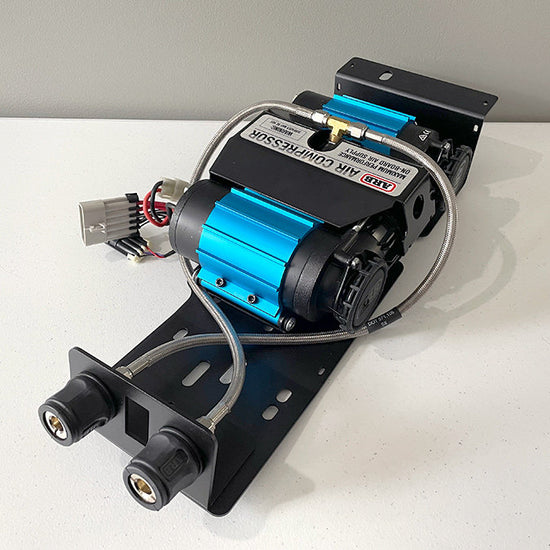

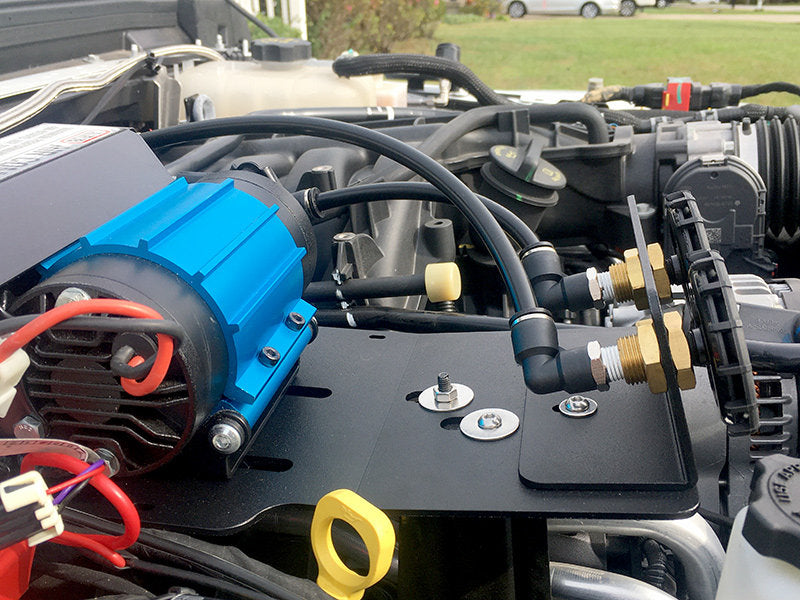

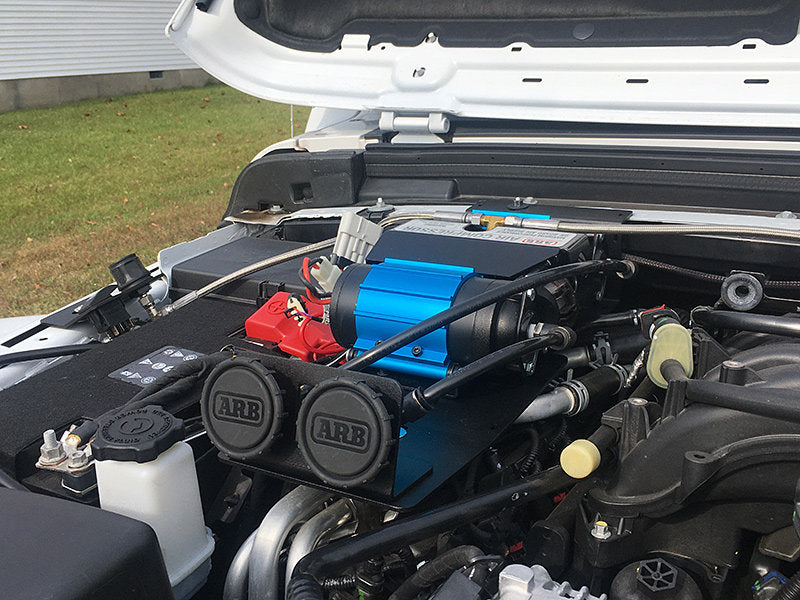

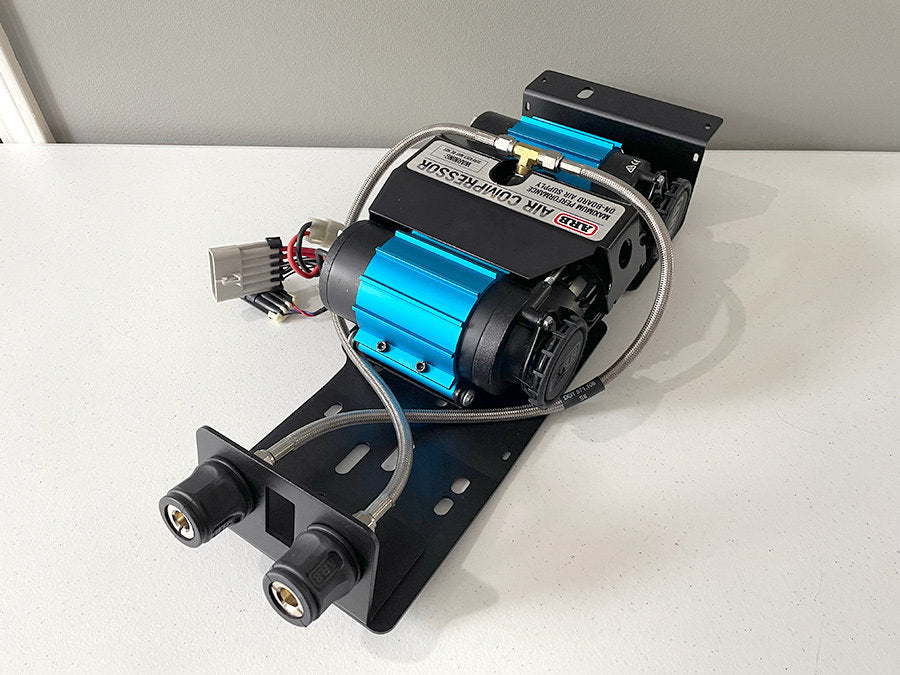

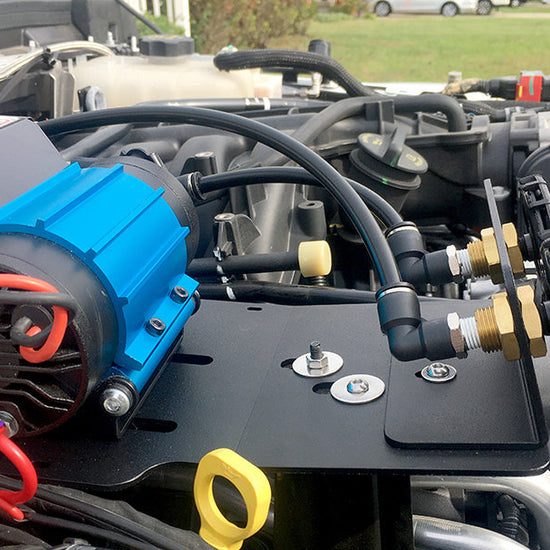

- "Dual Air Coupler Kit"- +$82.99 - includes compressor mounting plate, small front plate for air couplers and switch, mounting hardware, two 20" stainless air lines, one brass 3-way tee air fitting and two ARB JIC-4 Air Couplers to mount on the front small plate of the compressor mount.

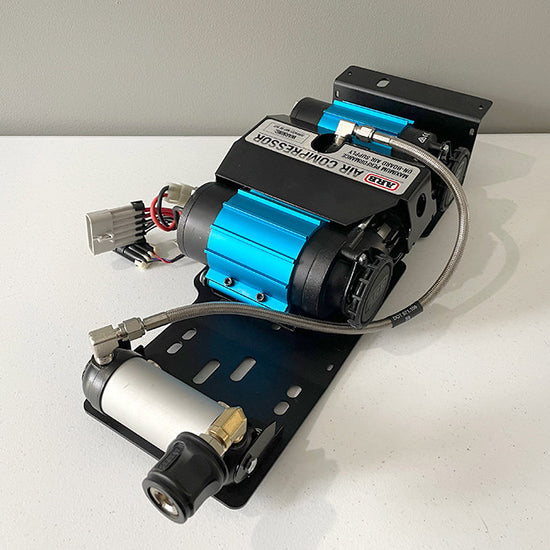

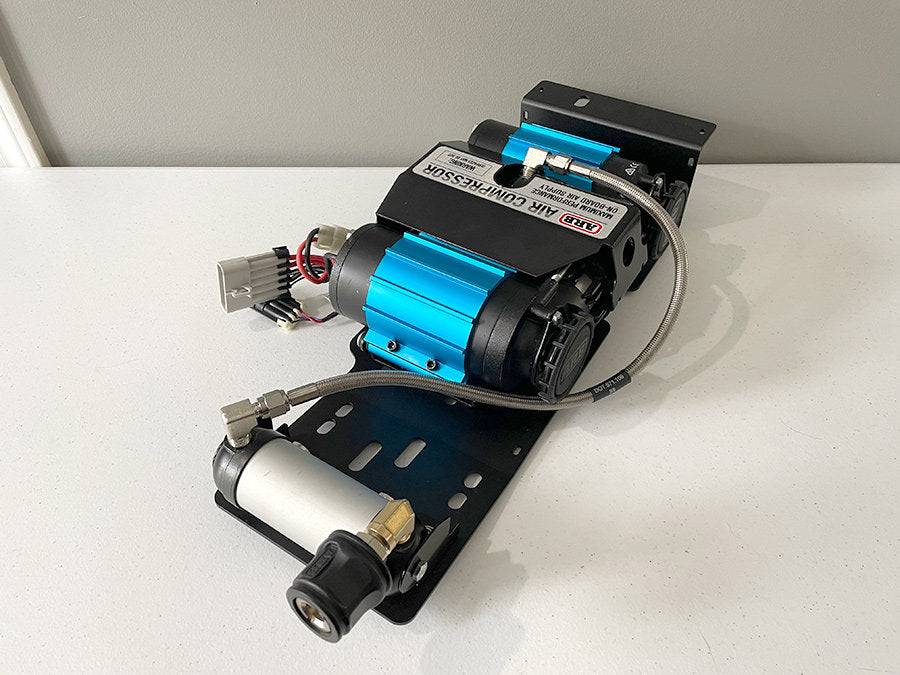

- "ARB Manifold Kit" - +$129.99 - includes compressor mounting plate, mounting hardware, ARB Manifold kit, one 20" stainless air line, two ARB 90° air fittings, one 90° brass NPT fitting and one ARB 1/4" NPT Air Coupler. The small front plate is omitted from this kit as the manifold is mounted in that same location.
Also available to go along with the UnderHood Compressor Mount:
UnderHood Remote Air Filter / Dual Air Chuck Plate
UnderHood Remote Rocker Switch / Air Chuck Plate - Short
UnderHood Remote Rocker Switch / Air Chuck Plate - Long
Mount is 1/8" 5052 powder coated aluminum for superior corrosion resistance. Stainless steel mounting hardware included. No drilling required.
NOTE: Use of an adhesive heat shield is highly recommended. 813 Fabrication & Design is not responsible for any heat damage that may occur to your ARB compressor. Heat shield NOT included.
Patent Pending
