Jeep JL/Gladiator - Under Front Seat Compressor Mount
Designed to mount ARB Twin/Single Compressors as well as most ViAir Compressors, including the new ViAir VMS System. The compressor mounts under the front passenger or driver side seat of the Jeep JL and Jeep Gladiator. The mount is made of 1/8" black texture powder coated aluminum.
Now also compatible with ARB Twin and Single Brushless Compressors!

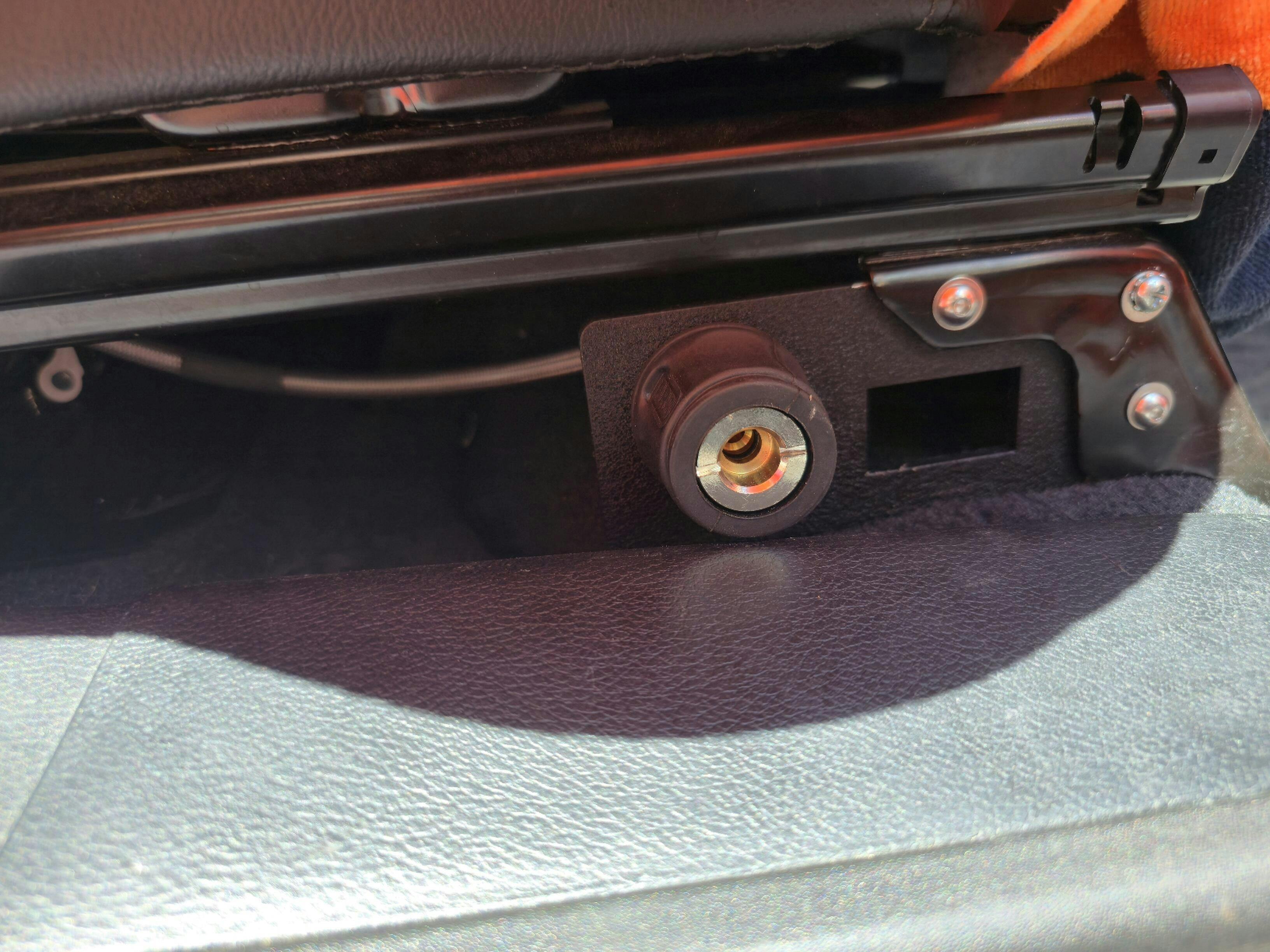

NO CUTTING of the carpet or the plastic air vent under the seat. Depending on what floor mats you use, you may need to trim the rear passenger floor mat to fit the mount and not block the rear accessory wall area. The rear wall is designed to mount extra accessories such as flashlights, fire extinguishers, etc. The mount comes with one front seat rail switch/coupler plate. The compressor mount is direct mount, no drilling required. The seat rail air switch/coupler plate does require drilling a few holes in the seat rail. We recommend adding some stick-on heat shield on the compressor mounting side under the compressor to help dissipate the heat that may transfer to the carpeted floor.
Air Kit Options Available:
- No Air Kit Needed - includes base mount and seat rail plate only. Choose this if you are installing the ViAir VMS System.
- Air Kit for ARB Single Compressor - includes 3-way pressure fitting, 20" stainless air hose, ARB JIC-4 air coupler and NPT 1/4" to JIC-4 fitting adapter +$58
- Air Kit for ARB Twin Compressor - includes 20" stainless air hose, ARB JIC-4 air coupler and 90° NPT 1/4" to JIC-4 fitting adapter +$49
Seat Rail Options Available:
- Universal Plate: Mounts on Driver or Passenger Side, includes air coupler and rocker switch holes +$0
- Passenger Air Only: Mounts on Passenger Side, includes air coupler hole only +$0
- Driver Air Only: Mounts on Driver Side, includes air coupler hole only +$0
- Full Length Plate - Passenger: Mounts on Passenger Side, includes air coupler hole, rocker switch hole and mounting holes for the ARB Pressure Control Module +$20
- Full Length Plate - Driver: Mounts on Driver Side, includes air coupler hole, rocker switch hole and mounting holes for the ARB Pressure Control Module +$20
- ViAir VMS Plate - Driver: Mounts on Driver Side, compatible with the new ViAir VMS tankless manifold. +$20
- ViAir VMS Plate - Passenger: Mounts on Driver Side, compatible with the new ViAir VMS tankless manifold. +$20
Included with the compressor mount kit are: Compressor mounting plate, front seat rail air switch/coupler plate and stainless hardware. Air compressor, air compressor mounting hardware, heat shield, tank and air fittings, rocker switch, pressure fitting, air couplers NOT included.
Let customers speak for us
Installed in a 2025 gladiator. Pretty quick and easy install. Everything lined up nicely. Using the ARB Twin Brushless. Directions were clear and easy to follow. Only thing I would like is just a packing list of how many bolts, washers etc you should have. I appeared to have a couple extra fender washers. Waiting on my ARB filter relocation kit to move those to the front plate. Thanks!
A little heavy but otherwise super helpful for accessing anything on the roof bars. I combined with a handle on the side and a step and now I can quickly get to traction boards up top.
Fits perfect to the ARB twin-compressor mounting kit. Would recommend. Great Service from 813 as always. Thank You
Awesome piece of kit. Well made and great fitment.
I installed this for my Diode Dynamics light controller, which unfortunately is on back order. However, I have installed the relays for my lights onto this bracket. The bracket provides a good amount of space and the wiring cutouts are large. I have seen no interference issues but like any add-on, it must be removed to gain access below it. Thankfully the plate is easily removable, just account for the wiring to extend enough to swing it on top if the intake.
Give me a convenient place to put things like my winch disconnect, bus bars , fuse blocks etc
And while it would be easy to fab something similar it would cost more in time and effort then what they charge for and they seem like a small business that reallyappreciates thier customers
Great bracket and outstanding customer service!!! Thank you for answering my questions and even helping my modification.
I have had only one other dead pedal, which was a solid one-piece unit that I swapped for this one. I chose this pedal because it offered a unique solution to the high/low capability of my LP6s...that is, the old school dimmer (on/off switch). I use a single AUX switch but still get high/low, so two functions for the cost of one AUX switch. However cool the dimmer switch is, the main function is as a foot rest and it works very well. Unlike my fixed pedal, I could elevate this pedal if I wanted full leg extension and I can elevate it when pulling floor mats without requiring pedal removal / reinstallation. I highly recommed.
Exactly what the Dr. ordered! From the get go, Jeremy was on top of it. From answering my chat questions online at 6am PST to verify the part would be shipped in time for an upcoming adventure, to his personal note when the order arrived. What a breath of fresh air and a superior product to boot. Can’t thank you enough, this will lighten the load and make use of our roofnest channels w/o the need of additional awning brackets.
Price was good workmen ship was excellent and fit perfect for what I was using it for.
Absolutely awesome
Great products very professional looking.
Such a fun throwback to the cars of old! Love the floor button and will be attaching it to a light bar soon. Best part is that the pedal actually fits me. Most pedals are too far back for me in the JLs. This one is perfect!
Paired this up with the Grimm EV portal. Great combination. The ARB under the hood, but up high and out of the muck. The portal is a bit gimmicky, but nice to pop the cover and have access to the air without popping the hood.
Is just what I needed! Fit great, looks great.
Customer Reviews

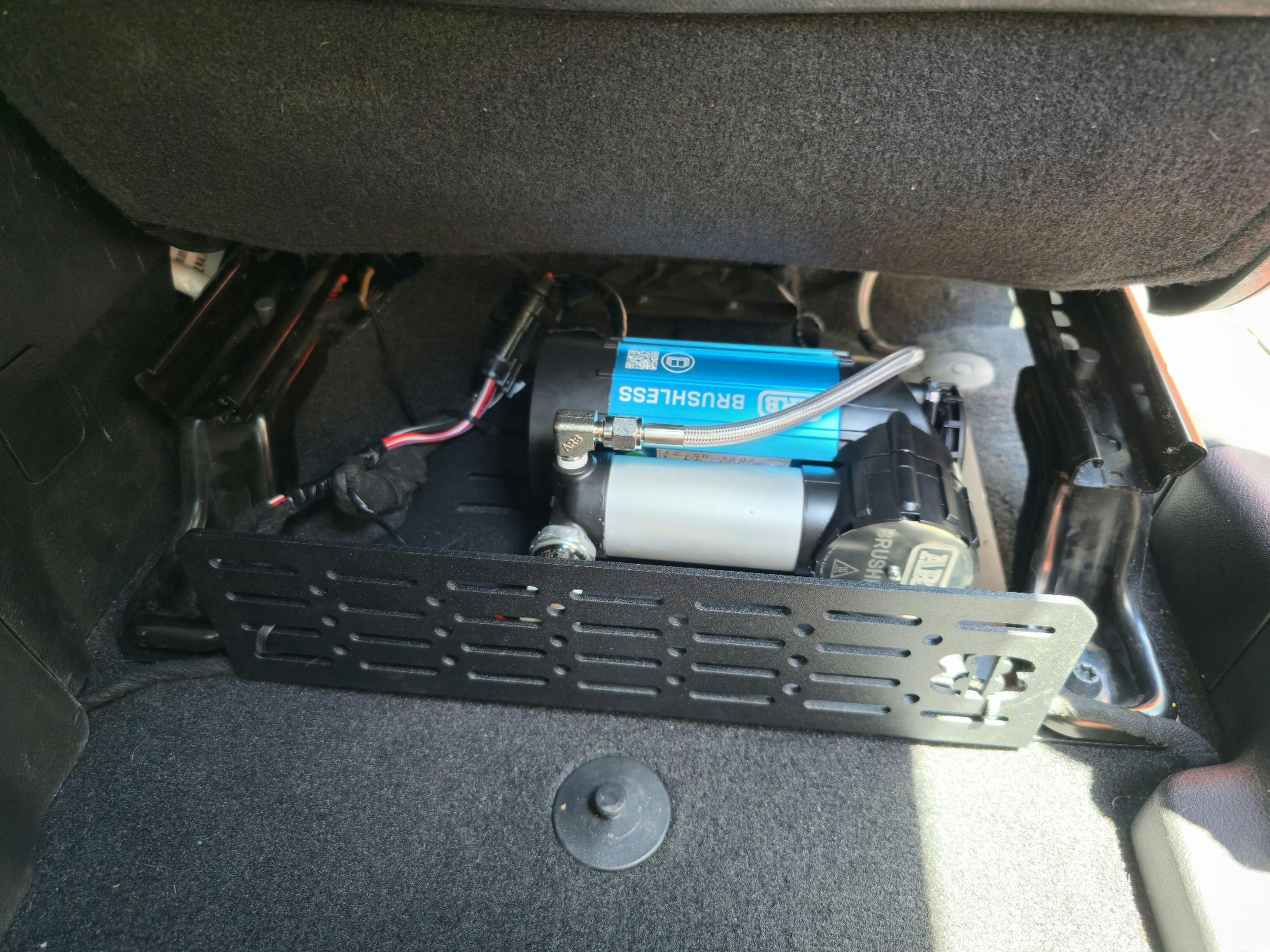

Fit great, looks great. This worked out even better than expected, the plate mounted to the seat looks factory and the compressor is almost completely hidden. It came with everything I needed.
This under seat compressor mount fits perfectly. Plenty of room for mounting the newer ARB Single Compressor and high quality in both fitment and coating for the mounting plate itself.
Highly recommend!
Great under seat mount. Am using it for the new brushless compressor and all works well. Great bang for the buck.
Product works great. Maybe include in the instructions that the compressor needs to be clocked to allow the 90 degree fitting to fit under the seat. I eventually figured that out though. Thanks
Very high end quality
